A Comprehensive Guide

Introduction

The anterior cruciate ligament (ACL) is one of the four major ligaments in the knee and plays a vital role in stabilizing the joint during movement, particularly in activities involving pivoting, jumping, or sudden changes in direction. ACL injuries are common in athletes, especially those involved in high-intensity sports such as football, basketball, soccer, and skiing. An ACL injury can vary in severity from a mild sprain to a complete tear, with the latter often requiring surgical intervention. Whether treated surgically or conservatively, effective rehabilitation is essential for full recovery, restoring knee function, and preventing future injuries.

This article provides an evidence-based guide to the rehabilitation process following an ACL injury, focusing on key aspects such as exercise therapy, progressive loading, functional training, and return-to-sport protocols.

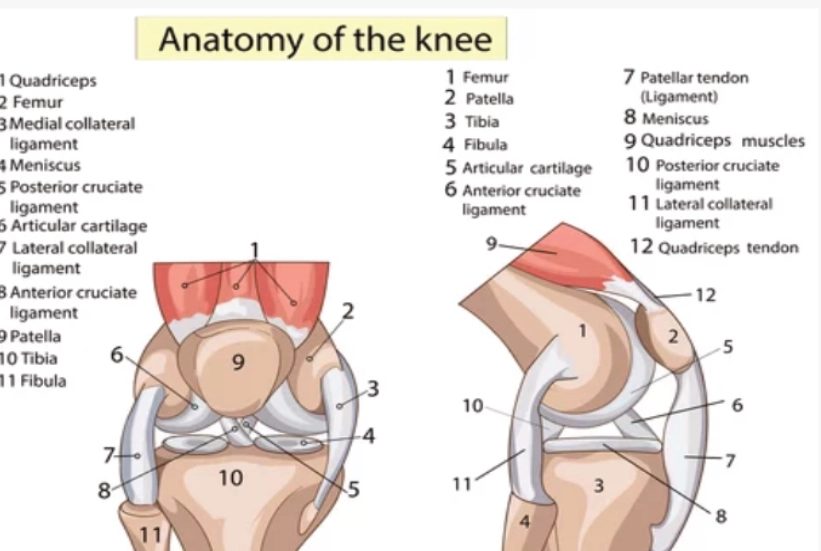

Anatomy of the ACL

The ACL is located in the middle of the knee joint and runs diagonally across the knee, connecting the femur (thigh bone) to the tibia (shin bone). It prevents the tibia from sliding too far forward relative to the femur and provides rotational stability. ACL injuries most commonly occur during sports that involve cutting, jumping, or landing, often resulting in a non-contact mechanism of injury.

Symptoms of an ACL injury may include:

A popping sound or sensation at the time of injury
Swelling in the knee joint
Instability or a feeling of the knee “giving out”
Limited range of motion and pain

Stages of ACL Rehabilitation

1. Acute Phase (0-2 Weeks)

The primary goal in the acute phase is to manage inflammation, reduce pain, and restore the initial range of motion. In this phase, a conservative approach may be sufficient for minor ACL injuries, while individuals with a full ACL tear may need to prepare for surgery.

Goals:

Control swelling and inflammation
Restore range of motion (especially knee extension)
Strengthen the quadriceps and hamstrings to improve knee stability
Prevent muscle atrophy and joint stiffness

Exercise Protocol:

Quad sets: Contract the quadriceps muscle while keeping the knee straight. Hold for 5-10 seconds, repeat 10-15 times for 3 sets.
Hamstring sets: Lie on your back with the knee bent and try to gently push the heel into the bed. Hold for 5-10 seconds, repeat 10-15 times.
Heel slides: Use a towel to slide the heel back towards the buttocks, aiming to increase the range of motion.
Patellar mobilizations: Gentle patellar gliding techniques to improve patellar mobility and reduce swelling.

Other Treatments:

Ice for reducing inflammation
Elevation and compression to control swelling
Crutches or a knee brace to offload the joint and prevent further damage

2. Early Rehabilitation Phase (2-6 Weeks)

In the early rehabilitation phase, the focus shifts toward restoring normal knee function by increasing strength, improving muscle activation, and working on flexibility. For patients undergoing surgery, this phase will focus on post-surgical healing.

Goals:

Restore normal range of motion
Begin strengthening exercises, especially for the quadriceps, hamstrings, and hip muscles
Begin neuromuscular control exercises to improve balance and joint stability
Pain management through controlled activity

Exercise Protocol:

Straight-leg raises: Focus on maintaining quadriceps contraction to improve muscle strength without placing stress on the knee.
Mini squats: Begin performing mini squats (10-20 degrees of flexion) to improve quadriceps strength and knee stability.
Stationary cycling: Low-impact cardiovascular activity to promote blood flow and restore range of motion.
Balance exercises: Stand on the injured leg while maintaining balance for 30 seconds, progress to standing on a balance pad.

3. Strengthening and Endurance Phase (6-12 Weeks)

At this stage, the primary goal is to continue strengthening the knee muscles, improve functional movements, and begin to restore proprioception (the body’s ability to sense the position of the joint). This phase is crucial in preparing the individual for more dynamic activities.

Goals:

Increase muscle strength and endurance
Improve joint stability through proprioceptive training
Begin performing more functional exercises (e.g., step-ups, lunges)
Continue improving range of motion

Exercise Protocol:

Leg press: Progress from bodyweight squats to leg press exercises to build quadriceps strength.
Lunges: Forward and reverse lunges help improve knee stability and strength.
Step-ups: Perform step-ups on a low platform to improve quadriceps and hip strength.
Proprioception exercises: Use balance boards or BOSU balls to increase ankle and knee joint awareness.

4. Sport-Specific and Functional Rehabilitation (12+ Weeks)

In the sport-specific phase, the goal is to return to high-intensity movements and sport-specific activities safely. Rehabilitation during this stage involves progressive loading and the integration of dynamic movements that mimic those required in sports.

Goals:

Restore full knee function and strength
Return to sport readiness
Improve dynamic balance, agility, and plyometric strength
Prevent re-injury

Exercise Protocol:

Plyometric exercises: These exercises involve explosive movements like box jumps, squat jumps, and lateral bounds.
Cutting drills: Gradually incorporate cutting, pivoting, and side-to-side movements to improve knee control.
Sprint drills: Short sprints or agility ladder drills to improve speed and coordination.
Jumping and landing: Train proper landing mechanics to minimize knee stress.

Return to Sport Criteria

The decision to return to sport should be based on both clinical assessment and functional tests. Key criteria for returning to sport following ACL rehabilitation include:

Full range of motion in the knee
No swelling or pain during or after activity
Strength recovery: Quadriceps and hamstring strength should be at least 90-95% of the uninjured side.
Proprioception and balance: Ability to maintain stable balance on unstable surfaces.
Functional testing: Passing tests for agility, hop distance, and cutting maneuvers without discomfort.

Surgical vs. Conservative Treatment

The choice between surgical and conservative management largely depends on the severity of the ACL injury, the patient’s age, activity level, and the presence of other injuries such as meniscal tears or ligament damage.

Surgical Approach: Surgical reconstruction of the ACL involves using a graft to replace the torn ligament. Rehabilitation following ACL surgery can take up to 9-12 months, depending on individual recovery.
Conservative Approach: For patients with partial tears or those who do not engage in high-impact sports, a non-surgical approach involving physical therapy and rehabilitation may be sufficient.

Conclusion

ACL injury rehabilitation is a multifaceted process that requires a structured, evidence-based approach tailored to the individual’s needs and goals. Early intervention, focusing on reducing pain and swelling, progressing to strength-building exercises, and ultimately returning to sport-specific activities, is crucial for a successful recovery. With careful progression through these phases, patients can achieve a full recovery, restore knee function, and prevent future injuries.

Disclaimer

The exercises and rehabilitation protocols provided in this article are for educational purposes only. It is important to consult with a healthcare provider or physiotherapist before starting any rehabilitation program, especially following an ACL injury or surgery. A personalized treatment plan is essential for optimal recovery and preventing re-injury.

References

Miyasaka, K. C., et al. (1991). The incidence of knee ligament injuries in the general population. American Journal of Sports Medicine, 19(3), 259-264.
Pinczewski, L. A., et al. (2007). A 10-year comparison of patellar tendon and hamstring tendon anterior cruciate ligament reconstruction. American Journal of Sports Medicine, 35(4), 547-554.
Zelle, B. A., et al. (2014). Rehabilitation following anterior cruciate ligament injury. Orthopaedic Clinics of North America, 45(3), 329-337.
Reid, D., & Hurd, W. J. (2015). Rehabilitation after anterior cruciate ligament reconstruction. Journal of Orthopaedic & Sports Physical Therapy, 45(7), 520-528.
Myer, G. D., et al. (2011). The effects of plyometric training on leg strength, jumping ability, and agility in female athletes. American Journal of Sports Medicine, 39(9), 2061-2069.
